Surveillance microphone can be connected to your TV. If you also want to hear audio surveillance in addition to the live security camera view on you TV, the below diagram shows a
Optional and explained below - If the user wants to also hear audio on the TV, they can connect a stand alone audio surveillance microphone to one of the RCA inputs of the TV.īelow is a list of equipment that was used in the above diagram. When the user wants to view the live video from the security camera, they just select the video input of the RCA in that they used and video is displayed. The 3.1mm power plug connects right to the DC power supply that is included with the camera and the power supply plugs into a standard 110 power outlet. Bunker hill security camera 8 channel tv#

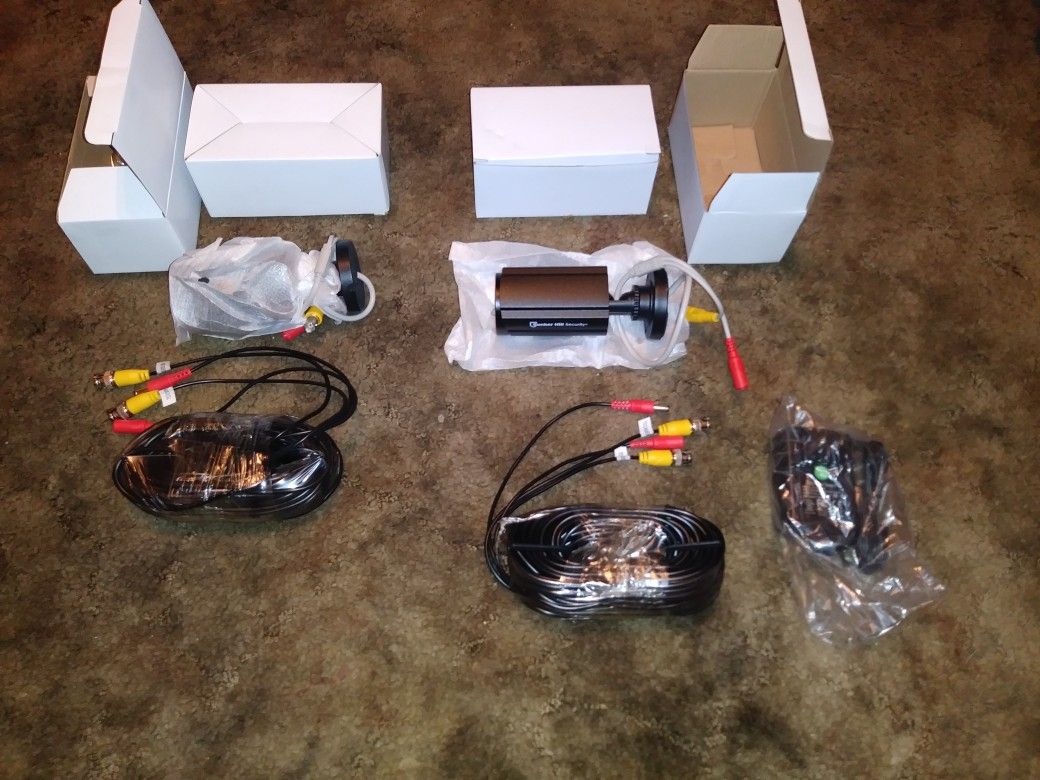

Because both video ends of the cable has male BNC connectors, the TV side must be converted to an RCA male connector so that it can plug into the female RCA input on the TV. Siamese is used in BNC security camera applications to run both video and power to / from cameras. Cable cut from a spool of RG59 Siamese cable can also be used. The CCTV camera video out and power in connected to a pre-made Siamese security camera cable. Here is an installation diagram that shows how an analog CCTV camera can be directly connected to a TV / monitor. Provide a theft deterrent system by showing by displaying live video on a monitor. Provide customers with a live view of some point of interest within the business. Check who is at the door at a home or business location. Here are some uses that customers have told us about. Why would someone want to use a security camera only to view live video and not record any surveillance footage to a DVR? TV display systems for HD security cameras. If you are interested in high definition instead of analog, you may be interested in checking out these complete How-to display your security cameras on multiple TVs - Follow these instruction if you would like to send the video signal from one or multiple security cameras on multiple TVs. This works for analog CCTV cameras and HD security cameras. How-to display multiple security cameras on a TV - Follow these instructions if you would like to display multiple security cameras on a single TV screen using a video multiplexer.
How-to connect an HD security camera to a TV - Follow these instructions if you are using a HD-over-Coax / HD BNC security camera. How-to connect an analog CCTV camera to a TV - Follow these instructions if you are using an analog CCTV camera (CVBS). This article will explain several ways to do this depending on the type of camera that you have, and if you are using a single camera or multiple cameras. These customer typically just want to display the live video feed from their CCTV camera on a TV monitor without recording any surveillance footage to a hard drive. Some customers want to connect their security camera directly to a TV without recording to a CCTV DVR.
